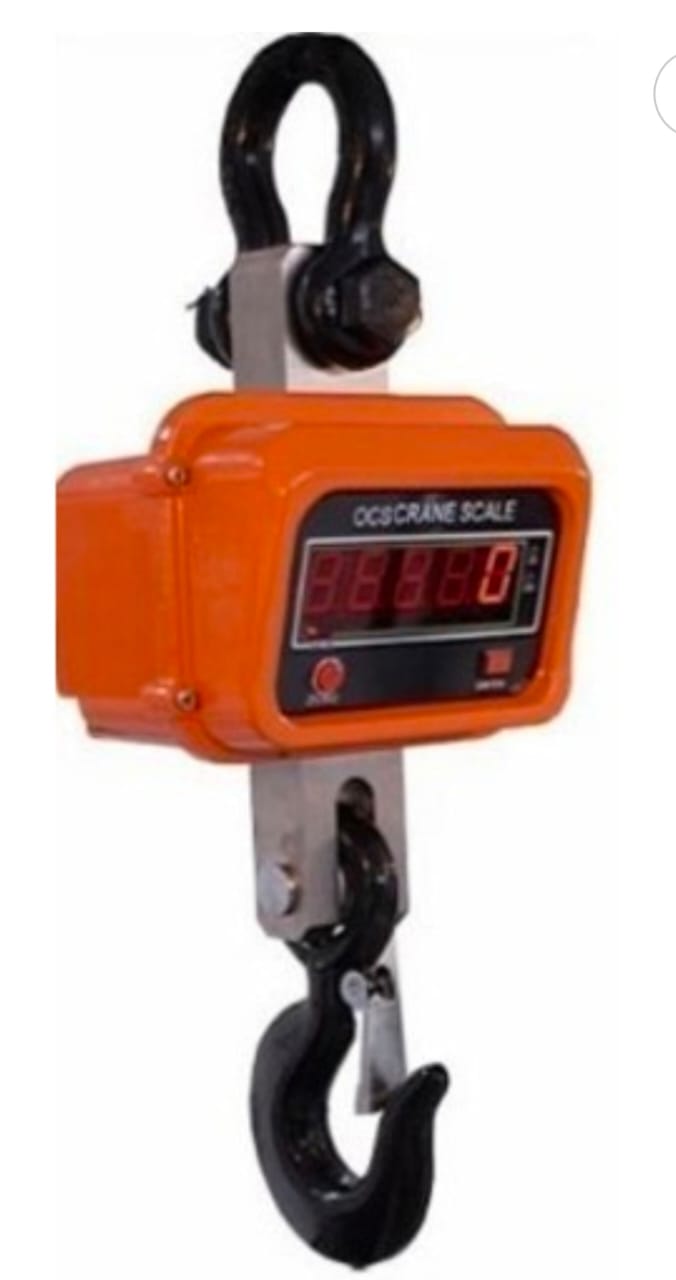

CRANE SCALE

PRODUCT DESCRIPTION:

~ Capacity ranges from 1 ton to 30 ton
~ Dia casting Body
~ Smart calibration (Thru key pad)
~ Power saving function
~ High bright RED display options available
~ In-built battery backup is standard for all models

CUSTOMER SERVICE: Samsui Scale Co is dedicated to 100% customer satisfaction! You are buying from scale professionals. We are standing behind our scales 24/7. Very Easy Troubleshooting and Calibration by Samsui Scale Co. Customer Support helpline ACCURATE & PRECISE

FEATURES:

~ High Precision Technology Load cell Senser
~ Easy to read bright LED display
~ Quick response with auto zero tracking battery indication
~ Auto software Calibration.
~ Protective PVC Cover for dust & Humidity.

USEFUL FOR:

~ Industries

TECHNICAL SPECIFICATION:

AC POWER SUPPLY SPECIFICATION: – Requires 10 to 15 Volt transformer with 500mA to 1.5ARating.
DC POWER SUPPLY SPECIFICATION: – Requires 6V battery with 1A to5A Rating.

TECHNICAL SPECIFICATION: -MCU: – Nuvoton based microcontroller with internal EEPROM IC and crystal for
lower maintenance and higher life of the IC.

ADC: – The mother card uses the latest AVIA technology based HX710,24-bit delta sigma ADC for higher resolution, for better accuracy and better linearity. ADC also has internal crystal so reduce the chance for crystal failure errors found in last decade.
1. Supply Voltage: – 230V AC,50Hz+/-10%
2. Operating Temperature: – 0 Degree C to 45 Degree.
3. Humidity: 10% to 95% relative humanity (Non condensing).
4. Power consumption: Max 10 watt.
5. Hysteresis: – 0.03% of Rated capacity.
6. Linearity: -99.9% of the Rated capacity.
