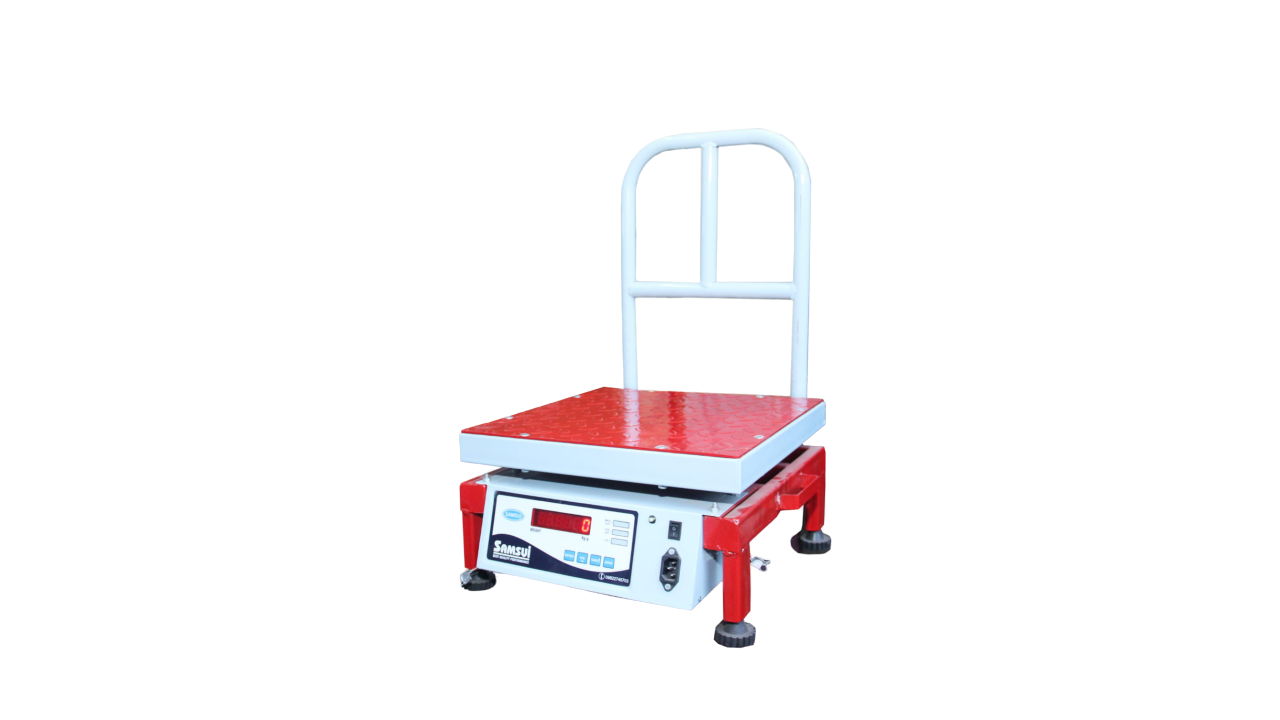

Samsui 100kg weighing scale Model Red bench

PRODUCT DESCRIPTION:

~ Capacity ranges from 10g to 100kg
~ MS Body with MS bottom
~ MS platter with 400×400 mm size
~ Smart calibration (Thru key pad)
~ Power saving function
~Government verification stamping of 1 year
~ High bright RED display options available
~ KG. / LITRE. conversion
~ In-built battery backup is standard for all models

CUSTOMER SERVICE: Samsui Corporation is dedicated to 100% customer satisfaction! You are buying from scale professionals. We are standing behind our scales 24/7. Very Easy Troubleshooting and Calibration by Samsui Corporation Customer Support helpline ACCURATE & PRECISE: 100 kg Maximum Weight, 10gram Precision. Weighing platform measures 400X400mm

FEATURES:

~ High Precision Technology Load cell
~ Easy to read bright LED display
~ Quick response with auto zero tracking battery indication
~ Auto software Calibration.
~ Protective PVC Cover for dust & Humidity.
~ Rugged construction with S.S/M. S removable platform

USEFUL FOR:

~ Hardware shop
~ Industries
~ Found ire
~ Market Yard
~ Wholesalers
~ Metal Market
~ Industries

TECHNICAL SPECIFICATION:

AC POWER SUPPLY SPECIFICATION: – Requires 10 to 15 Volt transformer with 500mA to 1.5ARating.
DC POWER SUPPLY SPECIFICATION: – Requires 6V battery with 1A to5A Rating.

TECHNICAL SPECIFICATION: -MCU: – Nuvoton based microcontroller with internal EEPROM IC and crystal for
lower maintenance and higher life of the IC.

ADC: – The mother card uses the latest AVIA technology based HX710,24-bit delta sigma ADC for higher resolution, for better accuracy and better linearity. ADC also has internal crystal so reduce the chance for crystal failure errors found in last decade.
1. Supply Voltage: – 230V AC,50Hz+/-10%
2. Operating Temperature: – 0 Degree C to 45 Degree.
3. Humidity: 10% to 95% relative humanity (Non condensing).
4. Power consumption: Max 10 watt.
5. Hysteresis: – 0.03% of Rated capacity.
6. Linearity: -99.9% of the Rated capacity.
7. Built for strength: -The strong metal body of the machine with mild steel platform and rust proof heavy-duty makes it capable of weighing objects continuously without hampering the quality. The machine’s capability to withstand continuous loads of weights makes it optimal for all working conditions.
